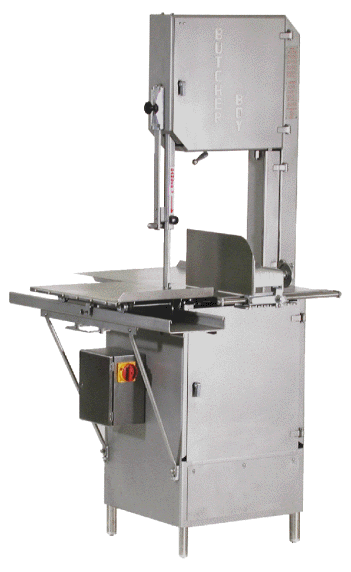

Butcher Boy LogoButcher Boy SA16 Stainless Steel Meat Saw

SA-16 Stainless Steel Meat Saw

MOTOR:
Heavy duty 2 HP, 208/230/460 volt, 3 phase, 60 hertz, TEFC. Motor conforms to NEMA specifications. 3 HP and other motor configurations available as options.
MOTOR CONTROLS:
Standard equipment. Saw shipped with starter, overload protection and stop/start station. User to supply over current protection.
START AND STOP CONTROL:
Operated by push and pull hand grip rod located in convenient position. Start button must be pushed while pulling on rod to start saw.
THICKNESS GAUGE:
Stainless steel face plate. Quick setting in one inch increments, fine adjustment by hand wheel. One revolution of hand wheel equals 1/8". Gauge can be moved out of the way for trimming or splitting and then returned to the original position without re-setting.
CONSTRUCTION:
Stainless steel fabricated to USDA standards.
SAW BLADE WHEELS:
Cast iron with tin-plated finish. Precision machined and dynamically balanced.
SAW BLADE:
5/8" wide × 126" long.
CUTTING CAPACITY:
15½" depth × 18" height.
TABLE TRACK:
One-piece all stainless steel construction formed to withstand bending, twisting or misalignment. Provides a perfect surface and guide for the meat-carrying table. This construction also prevents the accumulation of meat and bone particles, thus assuring effortless travel for smooth and even cutting.
CARRYING TABLE:
Heavy gauge all stainless steel. Insures straight line cuts with heavy loads. Table locks to keep from moving when used as a stationary table. Table travels on 4 ball bearing rollers.
STATIONARY TABLE:
Heavy gauge all stainless steel. Table removes for cleaning without tools.
VARIABLE HEIGHT:
The sturdy stainless steel legs have 3 inches of adjustment at 1 inch increments. Extra leveling adjustment at bottom of each leg allows for precise leveling.
SAFETY FEATURES:
Two-hand start, lockout switch, short cut plate and lower blade cover (lowered when saw not in use to prevent accidental contact with the blade).
CLEANING FEATURES:
Machine dismantles easily, without the use tools, for cleaning.
BLADE SPEED:
Blade speeds to 6000 feet per minute available. Standard blade speed 4000 feet per minute.
STANDARD EQUIPMENT:
Blade, waste box, instruction and parts manual.
WEIGHT:
Net 390 lbs - Shipping 465 lbs
Quantity:

Back to Top


SA-20 Stainless Steel Meat Saw

SA-20 Stainless Steel Meat Saw

MOTOR:
Heavy duty 3 HP, 208/230/460 volt, 3 phase, 60 hertz, TEFC. Motor conforms to NEMA specifications. 5 HP and other motor configurations available as options.
MOTOR CONTROLS:
Standard equipment. Saw shipped with starter, overload protection and stop/start station. User to supply over current protection.
START AND STOP CONTROL:
Operated by push and pull hand grip rod located in convenient position. Start button must be pushed while pulling on rod to start.
THICKNESS GAUGE:
Stainless steel face plate. Quick setting by hand wheel to thickness from 0" to 17½". Gauge can be moved out of the way for trimming or splitting and then returned to the original position without re-setting. For extra clearance gauge may be folded under the table completely out of the way.
CONSTRUCTION:
Stainless steel fabricated to USDA standards.
SAW BLADE WHEELS:
Cast iron with tin-plated finish. Precision machined and dynamically balanced.
SAW BLADE:
5/8" wide × 154" long.
CUTTING CAPACITY:
Full 20" depth × 20" height.
TABLE TRACK:
One-piece all stainless steel construction formed to withstand bending, twisting or misalignment. Provides a perfect surface and guide for the meat-carrying table. This construction also prevents the accumulation of meat and bone particles, thus assuring effortless travel for smooth and even cutting.
CARRYING TABLE:
Heavy gauge all stainless steel. Insures straight line cuts with heavy loads. Table locks to keep from moving when used as a stationary table. Table travels on 8 ball bearing rollers.
STATIONARY TABLE:
Heavy gauge all stainless steel. Front of table removes for cleaning.
VARIABLE HEIGHT:
The sturdy stainless steel legs have a 3" adjustment. Extra leveling adjustment at bottom of each leg allows for precise leveling.
SAFETY FEATURES:
Two-hand start, lockout switch, short cut plate and lower blade cover (lowered when saw not is use to prevent accidental contact with the blade).
CLEANING FEATURES:
Machine dismantles easily without the use of tools for cleaning.
BLADE SPEED:
Blade speeds to 6000 feet per minute available. Standard blade speed 4000 feet per minute.
STANDARD EQUIPMENT:
Blade, stainless steel waste box, instruction and parts manual.
WEIGHT:
Net 700 lbs - Shipping 805 lbs
Quantity:

Back to Top


SA30 & SA36

SA30 & SA36 Meat Saws

MOTORS:
Heavy duty, three phase, 208, 230, 460 volts, 60 cycles, TEFC, 7½ HP for SA 30, 10 HP for SA 36. Motors conform to NEMA specifications. Other motors available as special order. Motor enclosed in base housing.
MOTOR CONTROLS:
Magnetic, with automatic reset overload protection. Installed in NEMA 4x SS enclosure. Over current protection to be installed by user. Lockout switch standard.
START AND STOP CONTROL:
Conveniently located. Requires both hands to start. Latching red stop button.
HOUSING:
Fabricated of heavy welded stainless steel. Housing provides enclosure for motor and magnetic switch enclosure.
DOOR SWITCHES:
All models are equipped with saw door switches, which prevent starting the saw with the saw doors open.
SAW BLADE WHEELS:
Gray iron castings with tin plate for protection. Precision machined with backup shoulder and dynamically balanced, which helps prevent blade from coming off wheels. For cleaning: upper wheel is equipped with counter weight for easy removal.
SAW BLADES:
SA-30 uses a 1" wide × 216" long. The SA-36 uses a 1" wide × 248" long.
CUTTING CAPACITY:
The SA 30 has a capacity of 30" depth by 18 ½" height with rolling table, 22" height with fixed table. The SA-36 has a capacity of 36" depth by 18½" height with rolling table, 22" height with fixed table.
TABLES:
See diagram and chart for standard fixed and rolling table sizes. Any table configurations available as a special order option.
VARIABLE TABLE HEIGHT:
Legs adjustable for a table height of 42½" to 48½".
APPROVALS:
U.S.D.A. approved construction, UL listed components.
WEIGHT:
Approx. 1900 - 2300 lbs
NOTE:
Specifications - Design - Features are subject to change without notice.
Quantity:

Back to Top


TCA22 Grinder

TCA22 Grinder

MOTORS AVAILABLE:
1 HP-120 volts single phase, 1 ½ HP-240 volts single phase, 1 ½ HP or 2 HP-240/480 volts three phase.
ELECTRICAL:
120-volt single phase equipped with 15-amp “U" ground molded cord set. 240-volt single phase and three phase motors equipped with connecting cord without plug. All TCA22 GRINDERS except the 120-volt single phase unit have motor starters with overload relays and 24-volt controls.
CONSTRUCTION:
Frame, housing and pan are made of stainless steel. Pan and bowl are easily removed, without tools, for easy cleaning. Pan is larger, deeper and of heavier gauge stainless steel than previous models.
CUTTING GROUP:
The standard cutting group is of precision machined gray iron covered with hot dipped tin. The guard is aluminum. An optional cutting group of stainless steel is available. The guard is stainless steel.
POWER TRANSMISSION:
Power is transmitted from the motor to the ball bearing supported, hardened helical gear, oil bath lubricated gearbox by v belt and pulleys. The feed screw is driven by a replaceable iron chuck allowinG the wearing parts to be replaced easily. Thrust from the feed screw is taken up by a large thrust bearing in the gearbox.
CONSTRUCTION FEATURE:
A special chamber with drain holes between the gearbox and the bowls product area prevents intrusion of product in the gearbox or lubricant from the gearbox contaminating the product.
CAPACITY:
Depending on plate size and product the grinding capacity of the TCA22 will be from 18 to 30 pounds per minute.
ACCESSORIES:
The TCA22 comes with a stomper, parts list and instruction manual. Knife and plate are not furnished with the machine but maybe ordered separately.
MACHINE SHIPPING WEIGHT:
143 Pounds (65 KGS) Net. - 161 Pounds (73 KGS) Gross.
Quantity:

Back to Top


TCA32 Grinder

TCA32 Grinder

MOTORS AVAILABLE:
2 HP OR 3 HP-240/480 volts three phase. Single phase and motors of different electrical specifications available at addition cost.
ELECTRICAL:
Three phase motors equipped with connecting cord without plug. All TCA32 GRINDERS have motor starters with overload relays and 24-volt controls.
CONSTRUCTION:
Frame, housing and pan are made of stainless steel. Pan and bowl are easily removed, without tools, for easy cleaning. Pan is of heavy gauge stainless steel.
CUTTING GROUP:
The cutting group is of precision machined gray iron covered with hot dipped tin. The guard is aluminum.
POWER TRANSMISSION:
Power is transmitted from the motor to the ball bearing supported, hardened helical gear, oil bath lubricated gearbox by v belt and pulleys. The feed screw is driven by a replaceable iron chuck allowing the wearing parts to be replaced easily. Thrust from the feed screw is taken up by a large thrust bearing in the gearbox.
CONSTRUCTION FEATURE:
A special chamber with drain holes between the gearbox and the bowls product area prevents intrusion of product in the gearbox or lubricant from the gearbox contaminating the product.
CAPACITY:
Depending on plate size and product the grinding capacity of the TCA32 will be from 40 to 50 pounds per minute.
ACCESSORIES:
The TCA32 comes with a stomper, parts list and instruction manual. Knife and plate are not furnished with the machine but maybe ordered separately.
MACHINE SHIPPING WEIGHT:
210 Pounds (110 KGS) Net. - 240 Pounds (96 KGS) Gross
Quantity:

Back to Top


AA 66 Grinder

AA 66 Grinder

The AA Series meat grinder are primarily used as final grind grinders for fresh meat. The high speed, low torque characteristics of the AA's make them unsuitable for grinding frozen meat. The AA 1100 can be equipped with optional equipment such as:
different extension hoppers and bone collection systems.
MOTOR:
Heavy duty 50 hp, 208/230/460 volt, 3 phase, 60 hertz, TEFC motor conforms to NEMA specifications. Across the line start standard, others available.
GRINDING CAPACITY:
24,000 to 36,000 pounds per hour depending upon product and plate holes.
WEIGHT:
Net: 1460 lbs. Crated: 1540 lbs
Specifications: AA 1100
MOTOR:
Heavy duty 75 hp, 208/230/460 volt, 3 phase, 60 hertz, TEFC motor conforms to NEMA specifications. Across the line start standard, others available.
GRINDING CAPACITY:
36,000 to 60,000 pounds per hour depending upon product and plate holes.
WEIGHT:
Net: 2550 lbs. Crated: 2675 lbs.
Common Specifications:
MOTOR CONTROLS:
Standard equipment. Grinder shipped with starter, overload protection and stop start station. User to supply over current protection.
CONSTRUCTION:
Stainless steel fabricated to USDA standards.
CUTTING GROUP:
Stainless steel.
POWER TRANSMISSION:
The AA Series gearbox is carefully selected to with stand the high speeds utilized when grinding fresh product. The AA Series is supplied with a separate bearing housing equipped with oversize tapered roller bearings. These bearing take up the thrust loads developed when grinding.
NO CONTAMINATION:
A non-pressurized area with drain slots between the bearing housing and the grinder's hopper prevent lubricants from entering the food zone.
STANDARD EQUIPMENT:
Spurt guard, spanner wrench and parts/operating manual.
NOTE:
Specifications-Design-Features are subject to change without notice.
Quantity:

Back to Top


Auto Feed Grinder

AU56, AU56F & AU66S Auto Feed Grinders

DESCRIPTION:
Fully automatic feed high output grinder for fresh or tempered meat. Hopper has a 200 pound capacity with an extension adding from 200 to 250 pounds depending on extension. The frame and body are made of stainless steel for long life and easy cleaning. Feed paddle, conveyor feed screw and feed box are made of stainless steel. Moving parts such as the feed paddle assembly, conveyor feed screw and grinder feed screw is easily removed without tools for cleaning. The interior of the tub is smooth stainless steel and easily cleaned. Standard accessories include adjustable legs, spurt guard, spanner wrench, parts list and instruction manual. The machine is supplied with complete electrics for voltage specified at time of order.

The model 56 machine uses a 56 size plate (6" barrel, 6" plate). The cutting group is made of hot dipped tin finished cast iron (stainless steel available). This machine utilizes a 25 horsepower grinding motor transferred through a heavy-duty gearbox. Grinding capacity of 12,000 + pounds per hour*.

The model 56F machine uses a 66 size plate (6" barrel, 8 5/8" plate). The cutting group is made of hot dipped tin finished cast iron (stainless steel available). This machine utilizes a 30 horsepower grinding motor transferred through a heavy-duty gearbox. Grinding capacity of 15,000 + pounds per hour*.

The model 66S machine uses a 66S size plate (8 5/8" barrel, 8 5/8" plate). The cutting group is made of hot dipped tin finished cast iron (stainless steel available). This machine utilizes a 40 horsepower grinding motor transferred through a heavy duty gearbox. Grinding capacity of 24,000 + pounds per hour*. Optional equipment to accommodate a bone collection system without sacrificing production is available.

* Grind capacity subject to the variables encountered in the industry
NOTE:
Specifications-Design-Features are subject to change without notice.
Quantity:

Back to Top

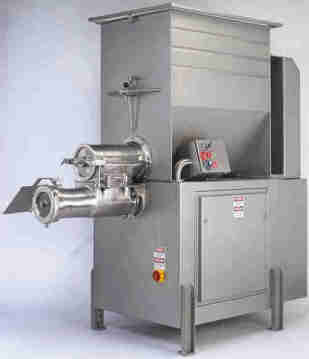

500MG Mixer/Grinder

500MG Mixer Grinder

DESCRIPTION:
Fully automatic mix and feed high output grinder for fresh or tempered meat. Hopper has a 500-pound mixing capacity. The speed of the conveyor feed screw is adjustable to allow exact control of product flow to the grinder feed screw. The frame and body are made of stainless steel for long life and easy cleaning. Mixing paddles, conveyor feed screw and feed box are made of stainless steel. Moving parts such as the mixer paddle assembly, conveyor feed screw and grinder feed screw are easily removed without tools for cleaning. The interior of the tub is smooth stainless steel and easily cleaned. Standard accessories include adjustable legs, spurt guard, spanner wrench, and parts list and instruction manual. The machine is supplied with complete electrics for voltage specified at time of order.

The model 56 machine uses a 56-size plate (6" barrel, 6" plate). The cutting group is made of hot dipped tin finished cast iron (stainless steel available). The machine utilizes a 25 horsepower grinding motor, 5 horsepower mixing motor and 5 horsepower conveyor motor transferred through separate heavy-duty gearboxes. Grinding capacity of 12,000 + pounds per hour.

The model 66 machine uses a 66-size plate (6" barrel, 8 5/8" plate). The cutting group is made of hot dipped tin finished cast iron (stainless steel available). This machine utilizes a 30 horsepower grinding motor, 5 horsepower mixing motor and 5 horsepower conveyor motor transferred through separate heavy-duty gearboxes. Grinding capacity of 15,000 + pounds per hour.

The model 66S machine uses a 66S size plate (8 5/8" barrel, 8 5/8" plate). The cutting group is made of hot dipped tin finished cast iron (stainless steel available). This machine utilizes a 40 horsepower grinding motor, 5 horsepower mixing motor and 5 horsepower conveyor motor transferred through separate heavy-duty gearboxes. Grinding capacity of 30,000 + pounds per hour. Optional equipment to accommodate bone collection systems without sacrificing production is available.
NOTE:
Specifications-Design-Features are subject to change without notice.
Quantity:

Back to Top

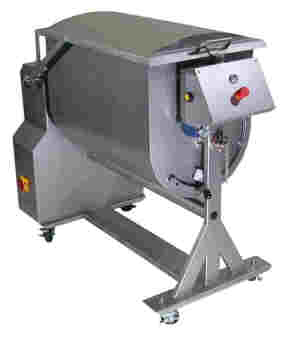

250 Mixer

250 MIXER

MOTOR:
Heavy duty 1½ HP, three phase brake motor, 230/460 volts, 60 hertz TEFC motor conforms to NEMA specifications. Motor and drive totally enclosed in cabinet.
GEAR REDUCTION:
Heavy-duty permanently lubricated helical/worm reduction.
SWITCH:
Installed in enclosure, magnetic with 24 volt control circuit, automatic rest overload protection. Machine electrical lock out switch provided. Over current protection to be installed by user.
START AND STOP CONTROL:
Interlocked with lid. Start and stop control conveniently located. Two hands needed to unload product with tub in tilt position.
TUB:
20" wide × 31" long × 24" deep. Fabricated of non-magnetic stainless steel. Equipped with safety lid. Tub tilts to right or left for unloading. SPECIFY UNLOADING DIRECTION WITH ORDER. Unloading position is 15" from floor.
MIXING PADDLES:
Non-magnetic, stainless steel paddle assembly, fabricated in one unit, easily removable for cleaning.
SAFETY LID:
Stainless steel easily opened and closed. Serves double purpose:
prevents spilling and automatically shuts off motor when opened. Mixer will not operate in upright position unless lid is closed. Seasoning can be added while mixing, thru view holes in lid.
CAPACITY:
Stainless steel tub holds up to 300 lbs at one filling. Best results with 250 lbs (for proper mixing do not overload).
CONSTRUCTION:
Tub, frame, cabinet, shafts and mixing paddle assembly are made of stainless steel.
CLEANING FEATURES:
Paddle assembly dismantles easily, without the use of tools.
ACCESSORIES:
Operating instructions and parts list.
WEIGHTS:
Net: 560 lbs. Shipping: 620 lbs.
Mixer manufactured with UL listed components to USDA standards.
Note:
Specifications-Design-Features are subject to change without notice
Quantity:

Back to Top


500 Mixer

500 MIXER

MOTOR:
Heavy duty 3 HP, three phase brake motor, 230/460 volts, 60 hertz TEFC motor conforms to NEMA specifications. Motor and drive totally enclosed in cabinet.
GEAR REDUCTION:
Heavy-duty permanently lubricated helical/worm reduction.
SWITCH:
Installed in enclosure, magnetic with 24 volt control circuit, automatic rest overload protection. Machine electrical lock out switch provided. Over current protection to be installed by user.
START AND STOP CONTROL:
Interlocked with lid. Start and stop control conveniently located. Two hands needed to unload product with tub in tilt position.
TUB:
24" wide × 36" long × 30" deep. Fabricated of non-magnetic stainless steel. Equipped with safety lid. Tub tilts to right or left for unloading. SPECIFY UNLOADING DIRECTION WITH ORDER. Unloading position is 27" from floor.
MIXING PADDLES:
Non-magnetic, stainless steel paddle assembly, fabricated in one unit, easily removable for cleaning.
SAFETY LID:
Stainless steel easily opened and closed. Serves double purpose:
prevents spilling and automatically shuts off motor when opened. Mixer will not operate in upright position unless lid is closed. Seasoning can be added while mixing, thru view holes in lid.
CAPACITY:
Stainless steel tub holds up to 600 lbs at one filling. Best results with 500 lbs (for proper mixing do not overload).
CONSTRUCTION:
Tub, frame, cabinet, shafts and mixing paddle assembly are made of stainless steel.
CLEANING FEATURES:
Paddle assembly dismantles easily, without the use of tools.
ACCESSORIES:
Operating instructions and parts list. Timers are optional to suit your operation.
Mixer manufactured with UL listed components to USDA standards.
Note:
Specifications-Design-Features are subject to change without notice
Quantity:
